Welcome to
TäbyPressen
Sid översikt Svensk             an oil seed press machine.                Site map English
SCREW PRESSES FOR COLD PRESSING:
RAPESEED, LINSEED, FLAXSEED, SUNFLOWER SEED, SESAME SEED, PEANUT, GROUND-NUTS, MUSTARD SEED, POPPY, COTTON SEED, JOJOBA, HEMP, RAPSSAAT, SENF, MOUTARDE, GRAINES DE TOURNESOL, COLZA, SONNENBLUMENKERNE, CHANVRE, ARACHIDE, COPRA, POMEGRANATE etc.

Pressing results:
Cold pressing without seed conditioning.

The mentioned values are depending on the type and condition, water -content, and cleaning of the oil seed

Oilseed                 Oil content     Seed Kg            Cake kg             Oil kg              Residual oil content
Rape-seed             45%                 100                     67                     33                     15%
Lin-seed, Flax      40%                 100                     75                     25                     13%
Sunflower-seed                              100                      58                     42
Hemp                                                100                     79                     21
Sesam                                              100                     73                     27
Jojoba                                               100                     60                     40
Soybeans              19%                  100                     90                     10
Coconut                                            100                     54                     46
Pomegranate                                   100                     91                       9 % with sediment.
Blanched Almonds
Shia Seed                                        100                    80                        20

See: Canarium indicum nut seed

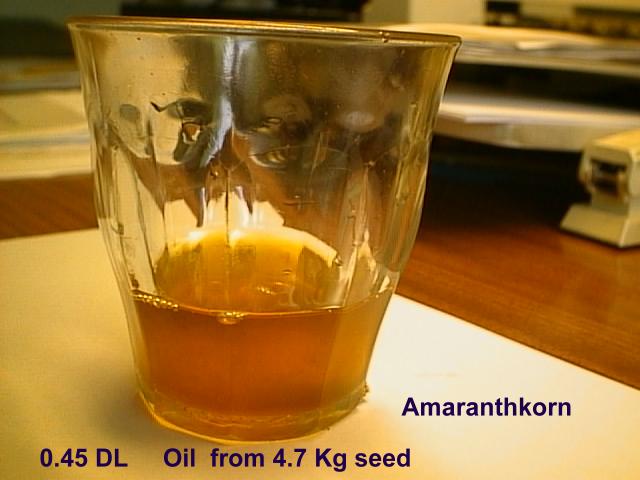

See:  Amaranthkorn-oil

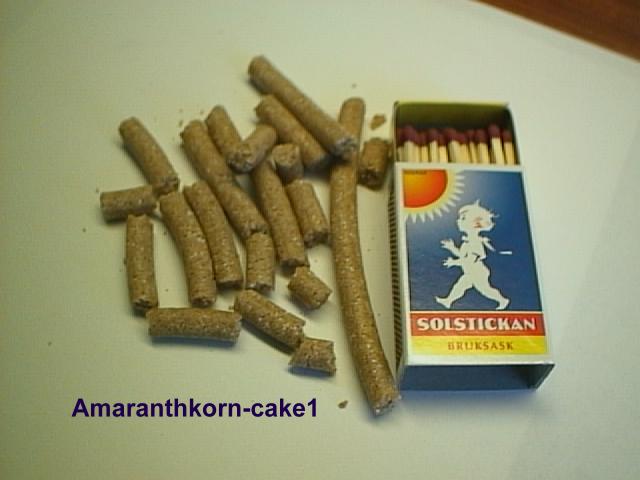

See: Amaranthkorn-cake

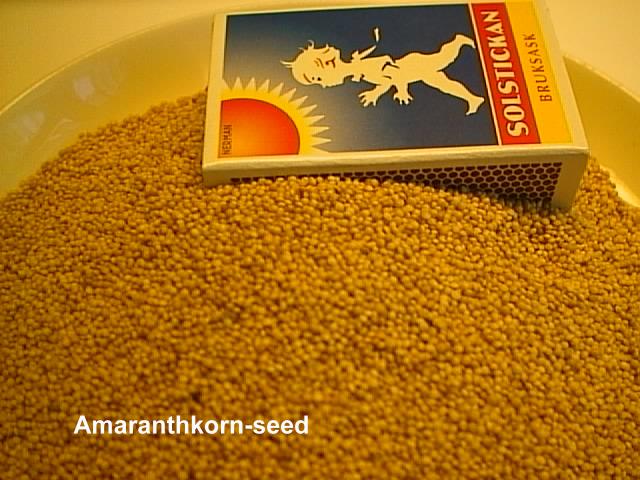

See: Amaranthkorn-seed
See: Castor seed
See: Castor oil

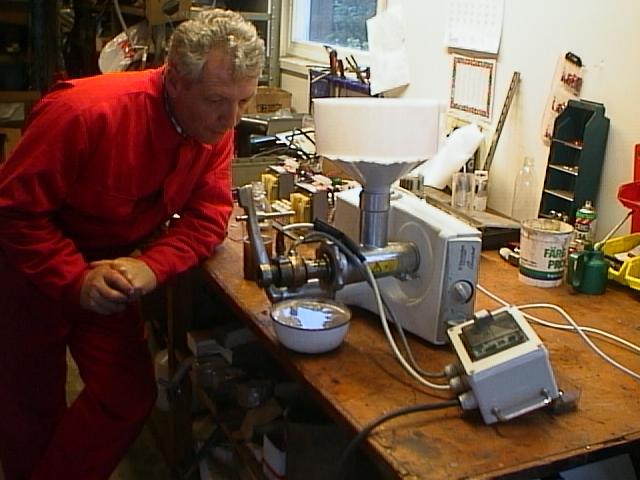

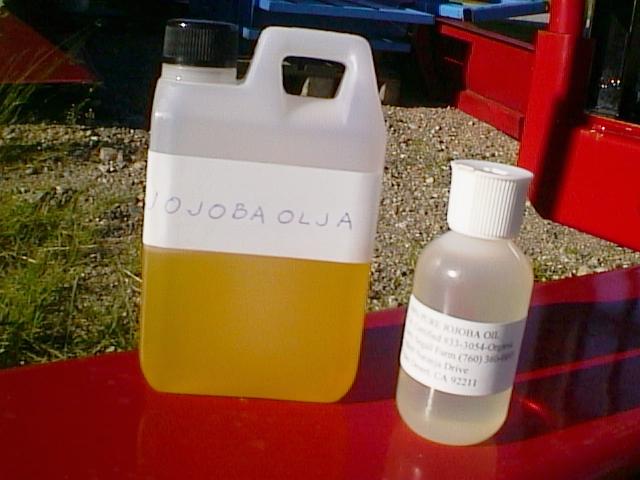

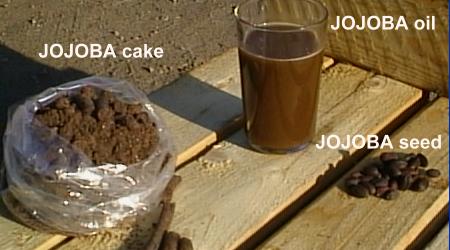

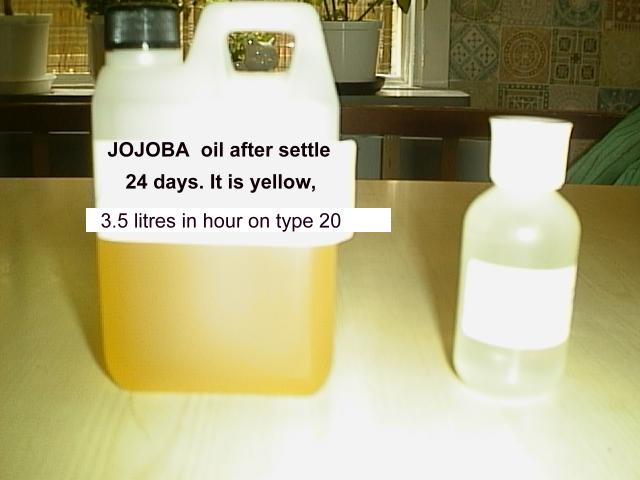

See: Jojoba   Jojoba 2  Jojoba3  Test of jojoba

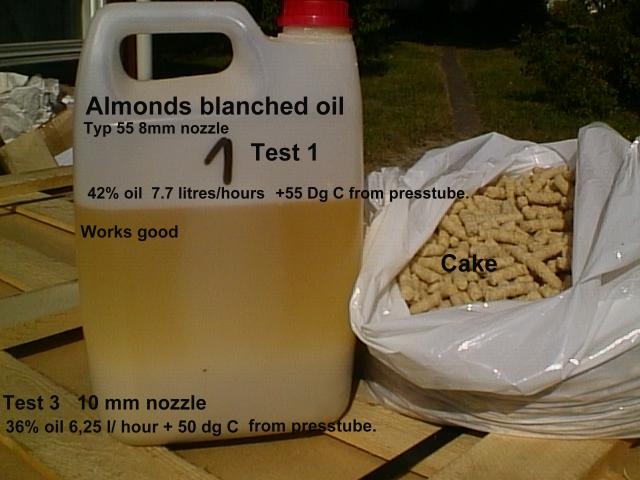

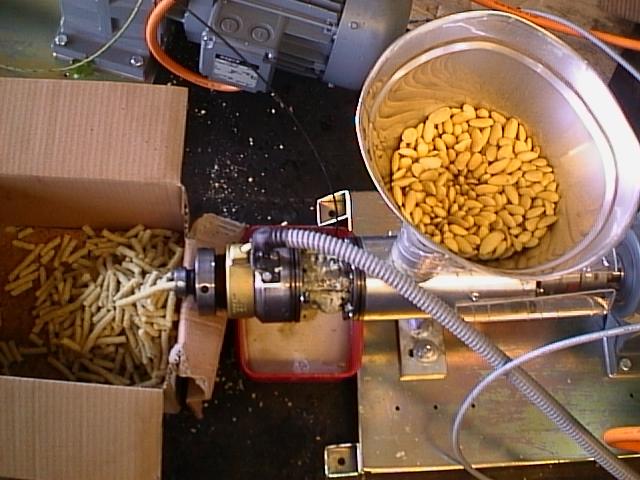

See:  Almonds blanched
See: Type 90 Chia Seed Savia Hispanica 6 Amp 2007-08-05.wmv

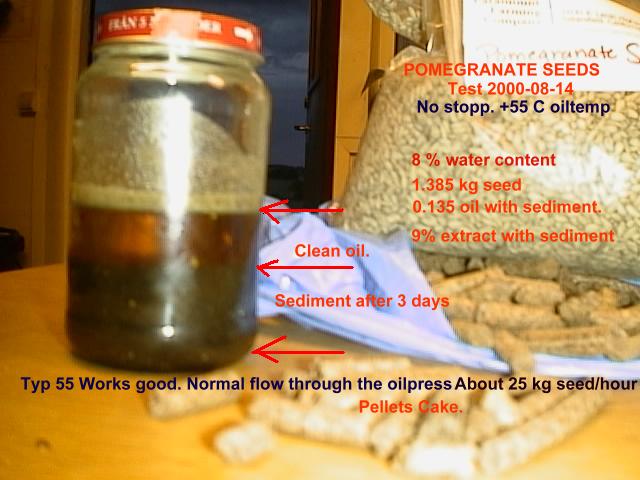

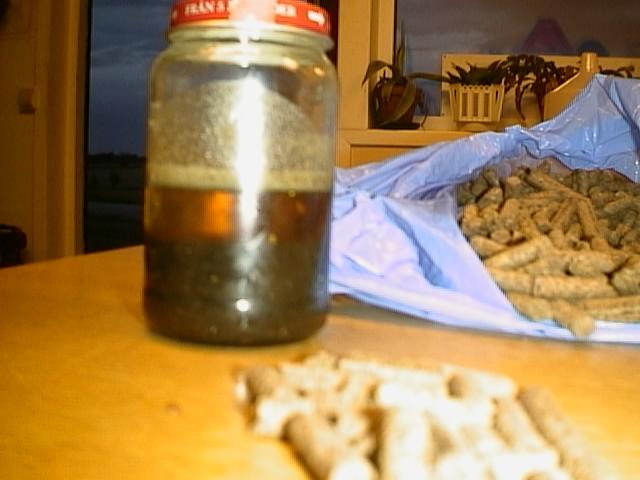

Pomegranate test.

Pomegrate test

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

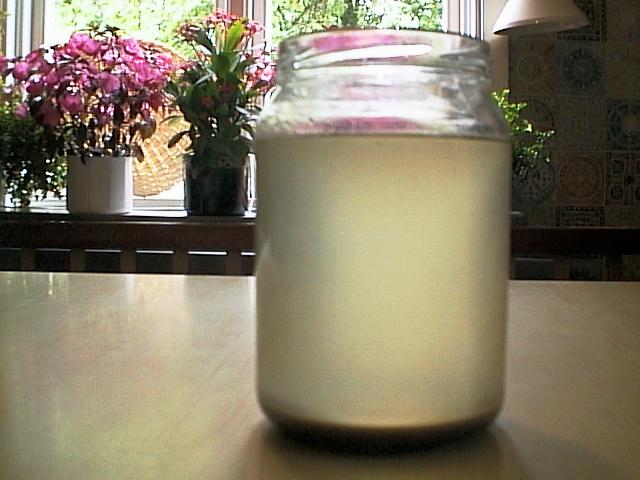

Coconut test 2001-08-17

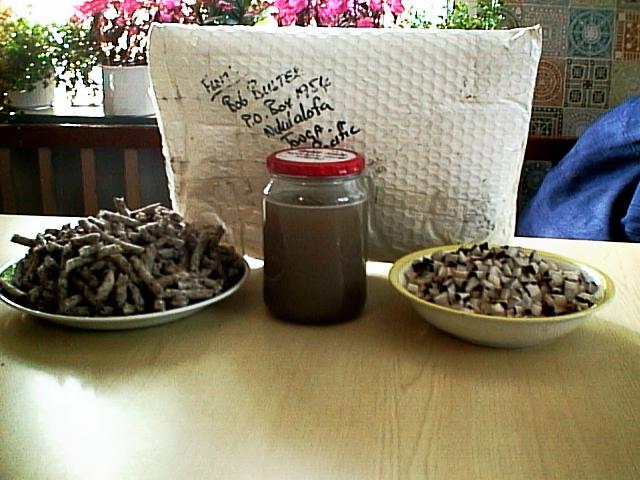

Coconut seed 2001-08-17

Coconut-oil after 2 days in  +35 40 dg C it is clear oil.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

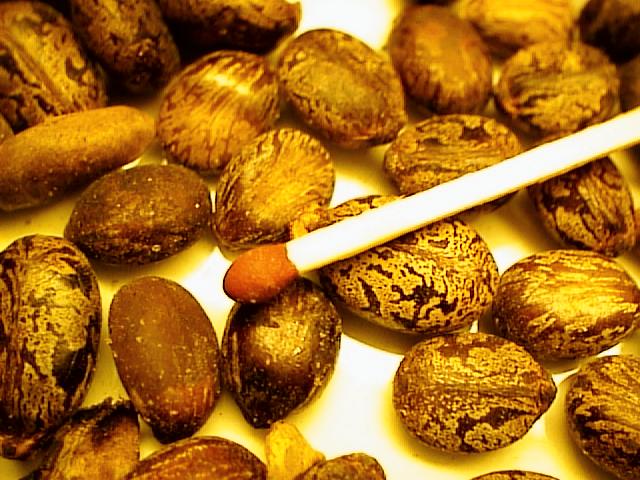

Castor seed

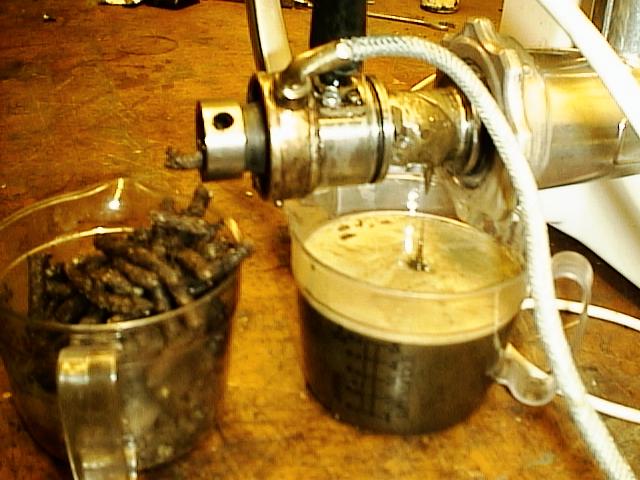

Castor oilpressing Type 20

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


2002-09-05



Test 1
Type 55  28 minutes 3,6 litre oil with sediment and 4,9 kg cake
Nozzle 8 mm
50 Hz
Oil +55 dg C direct from the presstube
7.7 litres oil in hour
42 % oil with sediment

Test 2

Nozzle 9 mm
40 Hz
Oil +52 dg C direct from the presstube
7,28 litre in hour
42% oil with sediment

Test 3

Nozzle 10 mm
50 Hz
Oil +50 dg C direct from the presstube
6,25 litre in hour
36% oil with sediment
Works good,  no problem at all.
Comments.  The oil is still in sediment only 3 days from the test.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

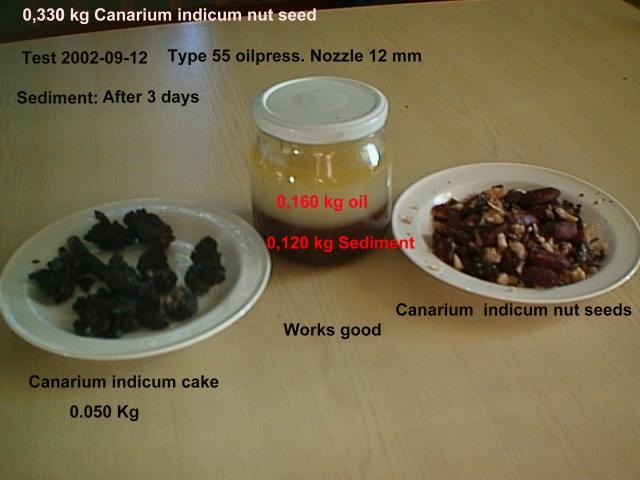

 Canarium indicum nut seed.
2002-09-26  Water moisture content about 5 to 6% in the nut

After 3 days sediment it is this result.



It works good.  Type 55  Nozzle 12mm

I dropp the seed in the inlet funnel and it comes oil out good not much cake.

 Total   0.33 kg  Canarium indicum nut seed

Oil                 0.160 kg

Sediment        0.120 kg

Cake            0.050 kg

Oiltemp:  direct from the oilpress about 55 dgC

Capacity with sediment and oil about 5 to 8 litre in hour.

Pressing Fish oil  Type 90 12 kg oil /hour 27% output from Fish food
